Traxsmart

Unrivaled Reliability, Ultimate Control. Track Smarter, Drive Safer.

The TSindia140: Advanced Tech for Modern Fleets.

Certified for AIS140 and BIS16833, the TSindia140 is a next-generation GPS tracker engineered for total fleet control, regulatory compliance, and real-time visibility. Designed for vehicles of all kinds — from commercial fleets to heavy-duty machines — it delivers advanced features, remote management, and data-driven insights to maximize operational efficiency.

AIS140 & BIS IS16833 Certified

Remote Immobilization & Real-Time Alerts

Advanced Sensor Integration

Fast & Accurate GPS Tracking

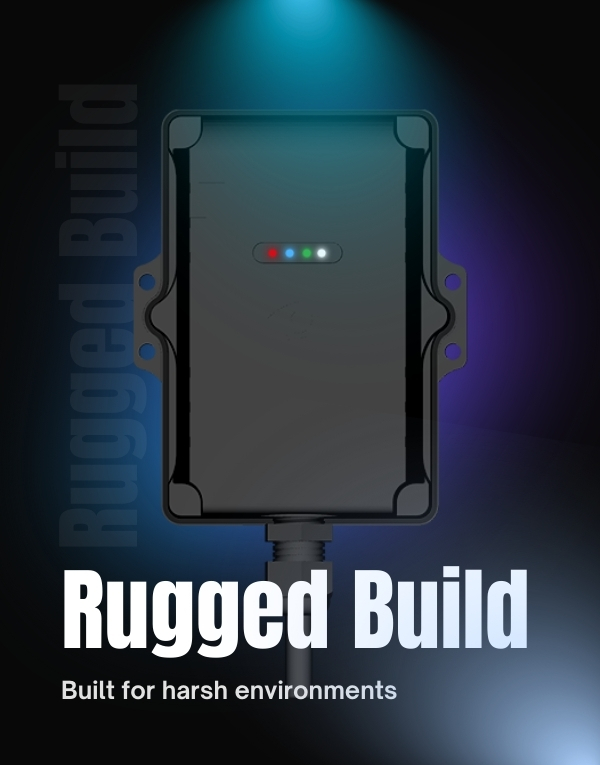

Built Rugged with IP65 Protection

Certification:

AIS140 & BIS IS16833 Approved

Protocol Support:

Government-mandated VLT and emergency button protocols

Supported Alerts:

SOS button press, Over speeding, Harsh braking, Harsh acceleration, Ignition ON/OFF, Tow detection, Power cut, GPS signal lost, Emergency alert, Geofence entry/exit, Device health check

SOS Button:

Included for emergency response (AIS140 requirement)

Remote Immobilization:

Vehicle ignition cut-off supported for theft or misuse control

GPS Tracking:

Live location updates, 30s cold start, geo-fencing enabled

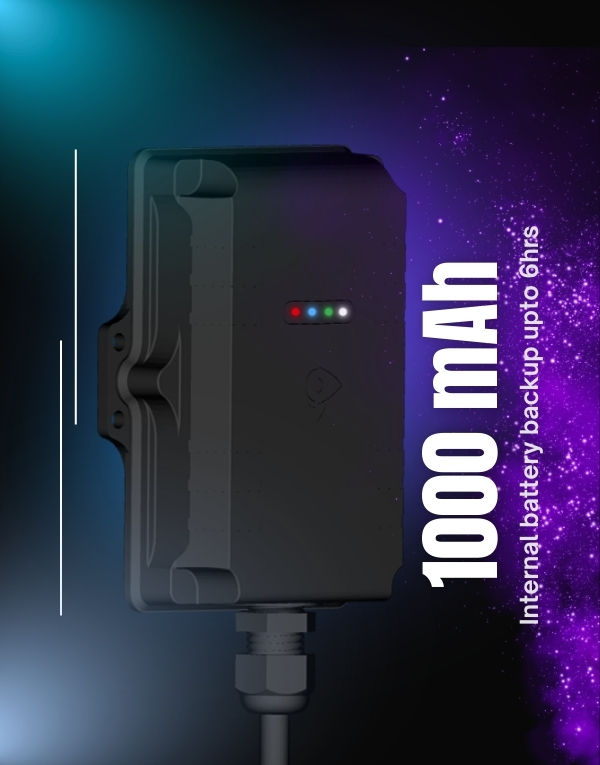

Power Backup:

1000mAh internal battery for power-loss protection

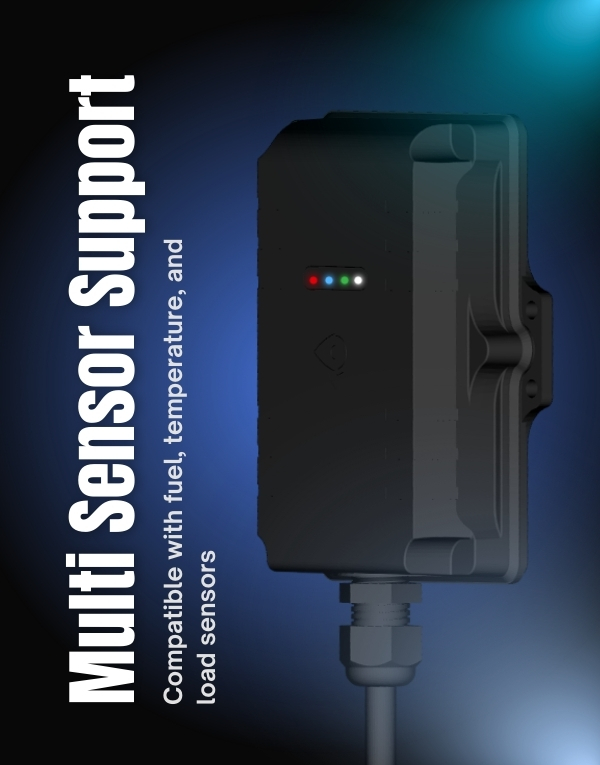

Sensor Support:

Fuel, door, AC, temperature, load sensors supported via I/Os

OTA Updates:

Over-the-air configuration and firmware upgrade support

Power Supply:

9–36 V DC

Cellular:

Quad Band 900/1800/850/1900

GPRS Data:

GPRS class 12: max. 85.6 kbps (downlink/uplink)

GNSS Sensitivity:

Acquisition: -147 dBm, Tracking: -163 dBm, Reacquisition: -156 dBm

GNSS Acquisition:

TTFF @ -130dBm, Cold Start: 32s, Warm Start: 25s, Hot Start: 2s

GNSS Receiving Bands:

GPS L1/Galileo E1 C/A: 1575.42 MHz,
IRNSS L5 C/A: 1176.45 MHz,
GLONASS L1 C/A: 1602.5625 MHz,
BD2 B1 C/A: 1561.098 MHz

Horizontal Position Accuracy:

< 1.8 m CEP

Communication:

TCP/IP, HTTP (For CDAC), FTP, SMS

Accelerometer:

6 Axis Motion Sensing

Internal Battery:

3.7 V Li-Poly, 600mAh

Antenna:

High Gain Onboard Antennas for GSM & GNSS

LEDs:

Three LEDs for Power, GPS and GSM status indication

Device Working Mode:

Active mode & Sleep mode

Memory:

Storage for 40000+ packets

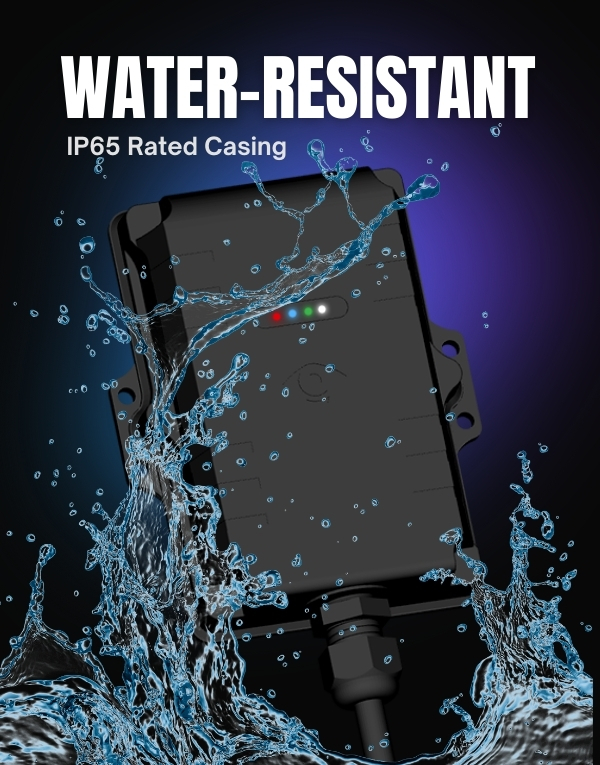

Housing:

Dust & Water Proof (IP65)

SIM Type:

Dual profile eSIM/ Plastic Sim

Operating Temperature:

-20°C to 85°C

Storage Temperature:

-40°C to 85°C

Protections:

Reverse Polarity, Overvoltage, Short Circuit, Surge, Load Dump

Certification:

AIS140 Compliant (ARAI), ROHS Compliant

Current Consumption:

Active Mode: 50–90 mA, Sleep Mode: <20 mA

Software Features:

FOTA, Odometer, Turn Detection, GPS Drift Control, Driving Behavior

Connector:

14 Pins (4 Pin + 6 Pin + 4 Pin)

Connectivity:

Ignition, Panic Button, 2 Digital Input,
1 Digital Output, 2 Analog Input, 1 RS232

Wire Harness:

4 Sqmm (7–36) SWG High Quality Flexible Wire,
Current Rating: 1.5 Amps Max,
Length: 1 mtr

Packaging information

TSindia140 GPS Device

Wiring Harness

External GNSS & GSM Antennas (if applicable)

SOS Button (AIS140 variant)

Installation Guide

Shipping Information

Free shipping on orders over ₹10,000

Standard delivery: 3–7 business days

Express delivery available at checkout

International shipping via DHL/FedEx

Secure, pre-tested and sealed packaging

Bulk Orders

We support large-scale deployment for fleet operators, system integrators, OEMs, and government projects. Special pricing, custom branding, and integration support available for orders of 50 units or more. Reach out to our sales team for volume discounts and tailored logistics.

For custom labeling, pre-configuration, or white-label requests, contact our enterprise sales desk. Contact Us
